Basalt technical fabrics are woven from continuous basalt fiber yarnor roving with good permeability and tapability. Their monofilament diametergenerally ranges from 5.5 μ m to 9 μ m, suitable for area of high temperatureresistance and corrosion resistance, and combine quite well with resin,rubber and other organic materials.
Comparison of Physical Properties Between Continuous Basalt Fiber and Other Fibers
| Properties | Basalt Fiber | S Glass Fiber | Common E Glass Fiber | Carbon Fiber T300 |
| Density/g.m³ | 2.65-3.05 | 2.45-2.5 | 2.54-2.62 | 1.8 |
| Tensile Strength/MPa | 3000-3500 | 4000-4500 | 2600-2800 | 3350-4500 |
| Modulus of Elasticity/Gpa | 90-110 | 86-90 | 70-73 | 230-240 |
| Elongation at Break/% | 3.2 | 5.6 | 4.8 | 1.6 |
| Max Service Temperature/℃ | 650 | 550 | 450 | 350 |
| Brute Force Retention Rate of 1 Hour in 400℃ | 82 | 81 | 62 | 63 |
Basalt Technical Fabric Specifications
| Specification | Width (cm) | Organization |
Warp Density (cm) |
(Twist/m) |
Areal Density |
| BW-0.96 | 96-100 | 8HS | 16.5±1 | 13+1 | 800-850 |
| BW-0.4-96 | 96-200 | 4HS | 18±1 | 12.5±1 | 420-450 |
| BW-0.35-100 | 100-120 | PLAIN | 11±1 | 8±1 | 380-400 |
| BY7-22-S110 | 100-120 | PLAIN | 17±1 | 12.5±1 | 200-220 |
Note:Can custom-make according to customer'srequirements for other specifications.
Applications

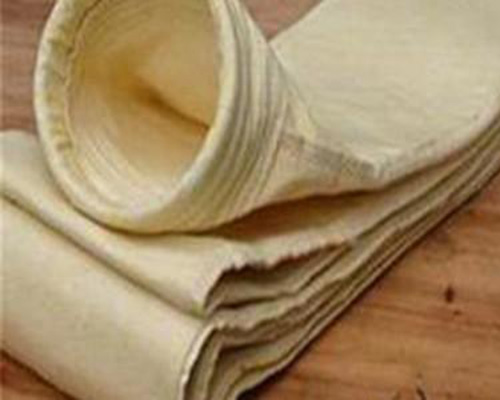

*Filter and dust collecting fabric with high temperature resistance, acid and alkali resistance

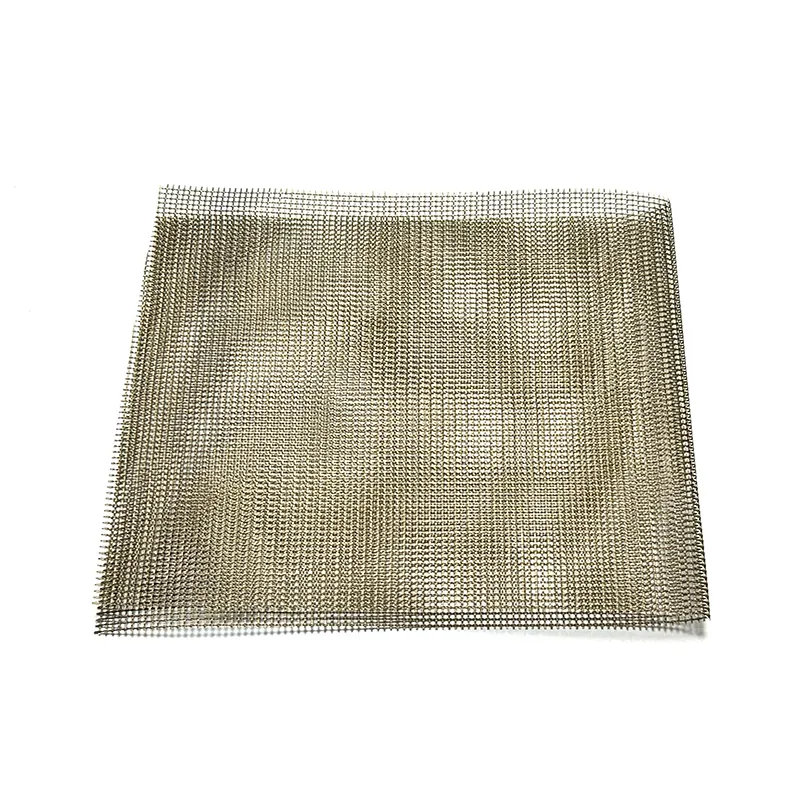

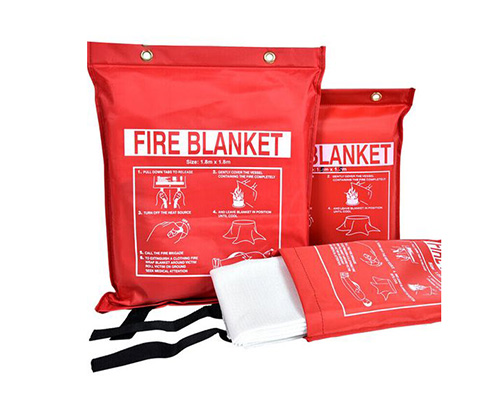

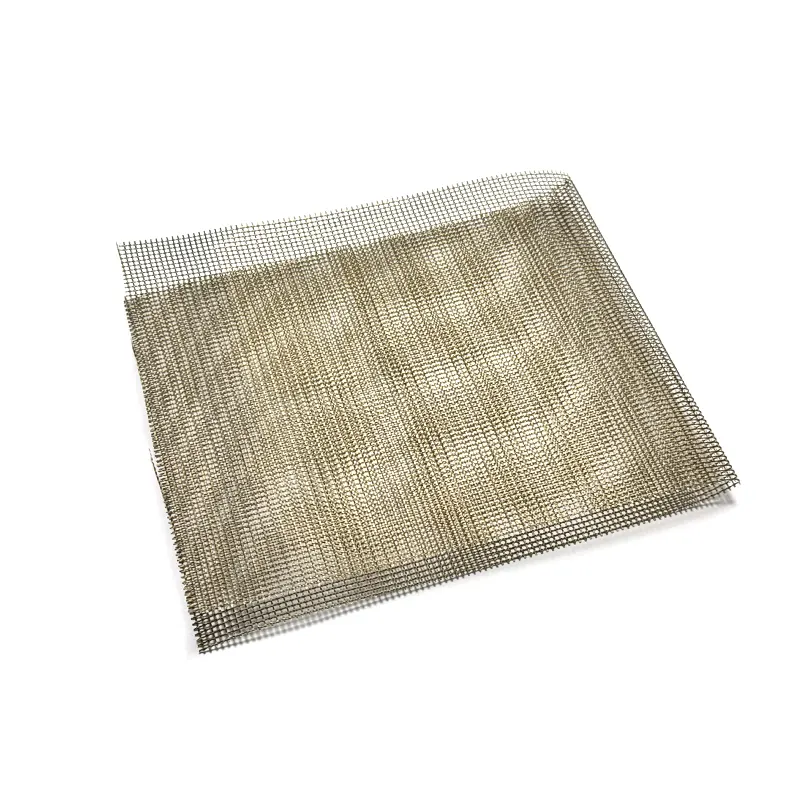

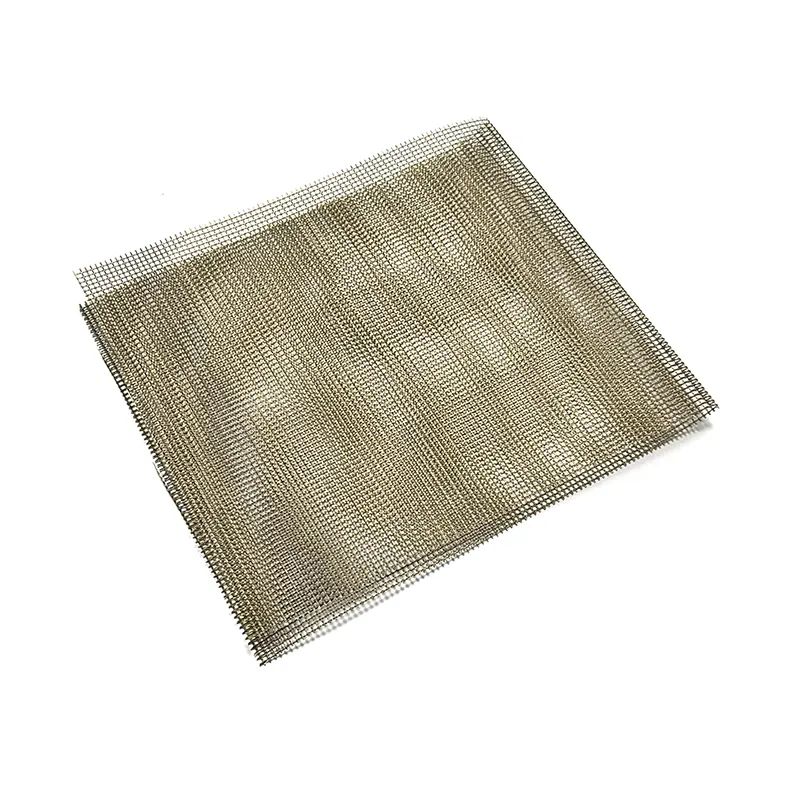

*Many types of special technical fabrics, fireproof cloth, mesh cloth
